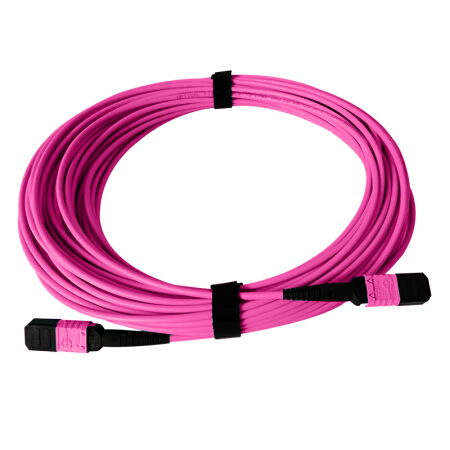

1 Meter 12 Cores OM4 MPO Fiber Optic Patch Cord And Pigtail Jumper For Data Center

Name: 1 Meter 12 Cores OM4 MPO Fiber Optic Patch Cord And Pigtail Jumper For Data Center
Brand: FONGKO
Price: 1 USD

China 1 Meter 12 Cores OM4 MPO Fiber Optic Patch Cord And Pigtail Jumper For Data Center wholesale

Model Number : FKPAT-014

Place of Origin : China

Brand Name : FONGKO

MOQ : 10 Pieces

Price : Negotiatable

Type : Fiber Patch cord, MPO Patch cord

Use : FTTH

Product name : fiber optic patch cord iso

Application : FTTB,40G/100G SFP,SFP+,QSFP, FTTH network

Connector Type : MPO

Fiber count : 8/12/24

Connector : MPO/MTP

Fiber Type : MM

Operating temperature : -40~+60

Contact Now

Product Description

MPO/MTP harnesses Breakout cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. With US Conec MTP connectors and Corning SMF-28 ultra optical fiber, it is optimized for 40G QSFP+ PLR4 to 10G SFP+ LR, 400G OSFP/QSFP-DD DR4 to 100G QSFP DR and 400G OSFP/QSFP-DD XDR4 to 100G QSFP FR optics direct connection and high-density data center applications. Fongko provide complete solution for your data center interconnection solution, including MPO/MTP Trunk Cable ,MPO/MTP Harnesses Cables ,MPO/MTP Fan out 0.9mm Patch Cords ,IP-Series MPO/MTP Assembly ,High Density Patch Cords ,MPO/MTP Loopback ,MT Patch Cords,MPO/MTP Cassettes ,MPO/MTP Fiber Optic Patch Panel;

Features

100% pre-terminated and tested in factory to ensure transfer performance
Rapid configuration and networking, reduce installation time
Supports 40G and 100G network applications
Jacket material: LSZH, OFNR, OFNP available
Supports up to 12F, 24F, 48F, 72F, 96F, 144F, customized products are available

Application

Data communication network
Optical System Access network
Storage area networking fiber channel
High density architectures

Performance Level			Standard		Elite
Connector	Mode	Endface	IL(max) (dB)	RL(min) (dB)	IL(max) (dB)	RL(min) (dB)
MPO/MTP	SM	12F/APC	≤0.70	≥60	≤0.35	≥60
		24F/APC	≤0.75	≥60	≤0.35	≥60
		48F/APC	≤0.75	≥60
	MM	12F/PC	≤0.50	≥20	≤0.35	≥20
		24F/PC	≤0.50	≥20	≤0.35	≥20
		48F/PC	≤0.50	≥20
LC/SC/FC/ST	SM	APC	≤0.30	≥60	≤0.10	≥60
	SM	UPC	≤0.20	≥50	≤0.10	≥50
	MM	PC	≤0.20	≥30	≤0.10	≥30

1 Meter 12 Cores OM4 MPO Fiber Optic Patch Cord And Pigtail Jumper For Data Center
